A Vertical Direction of Cement on the device-Cement Bucket Elevator

Have you remembered the cement screw conveyor before? It is on the horizontal transmission of cement, today I will introduce you to a vertical direction of cement on the device. It is our cement bucket elevator, which is has a wide range of applications.

Our NE type bucket elevator’s traction configuration is plate chain, it can transport powder, granular and block material, and also high grinding material, such as coal powder, slag, limestone, cement clinker, coal and dry clay etc, material temperature is less than 250℃,the max lifting height of it can be 40m.

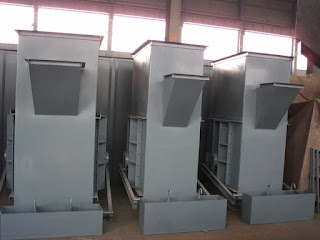

cement bucket elevator

 Hopper scoops up materials from the stone bucket below, then is lifted to the top with the conveyor belt or chain, and next it is downward rolled over bypass the wheel on the top and the materials are dumped into the accept slot now by bucket chain or hoist conveyor, and the whole process is over. The driving band of bucket elevator with driver is commonly made of rubber, and it is installed below or above the drive roller and the divert roller. The chain-drive bucket elevator is generally equipped with two parallel transmission chain, on which above or below is a drive sprocket and a divert sprocket. Continuous Chain or Belt Bucket Elevator for Cement are generally equipped with chassis to prevent the dust flying into the bucket elevator.

►Features

1. Cement bucket elevator machine adopt plate chain, gravity discharge materials

2. Chain is the superior alloy steel high strength plate chain, wear-resisting and steady.

3. Adopt several kinds driving group to drive, there are maintains frame and guardrail on driven platform.

4. There are rail and backstop, to prevent chain swing while running

5. There install the anti-return rubber plate at the discharge outlet;

6. Bottom part has the self-tension device.

►Advantage

1.Low driving power, inflow feeding, induction unloading, high-volume hopper intensive arrangement. There is almost no feed back and excavating circumstance when materials are lifted, so invalid power is little.

2.Wide lifting range, little materials type and property requirement can not only lift general powder and granule materials, but also lift high polishing materials. Sound seal and little circumstance pollution.

3.Good running reliability, the advanced design principle and handling method assure reliability of whole machine running, the non-fault time exceed 20 thousand hours. Stable running make it reach higher lifting height.

4.The life is long, inflow feeding, non excavating with hopper and there is few extrusion and collision circumstance between materials. There is little materials sprinking during feeding and discharging to reduce machinery abrasion.

5.wide application bucket elevator as one of material handling equipment  is used in powder, graininess and patch delivering upward unpolishing and subpolishing scattered materials whose density is less than 1.5t/m, such as coal, grail, dust coke.
